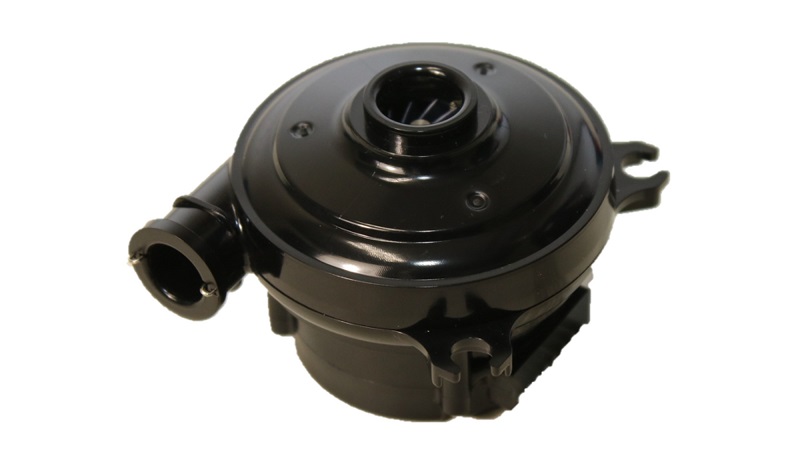

5kPa blower
- Low noise level
- Quick acceleration response
- Compact, light weight
- Long life time
Technical Data
Motor Specification
| Unit | Value | Remarks | |
| Type of Motor | DC Brushless | ||
| Nominal Voltage | V |
12 24 |
Two types available |
| Speed Range | r/min | 0～50,000 | |
| Shaft Posture | Free | ||
| Direction of Rotation | CCW | Viewing from inlet-port side | |
| Ambient Temperature | °C | 0~50 | |
| Ambient Humidity | %RH | 15~90 | No condensation |
| Heatproof Temp of Coil | °C | 155 | |
| Atmospheric Pressure | hPa | 770~1,013 | |
| Number of Phases | 3 | ||
| Number of Poles | 2 | ||
| Number of Slots | 6 | ||
| Type of Bearing | Ball Bearing | ||
| Mounting Flange | Yes/No | Selectable | |
| Thermistor | Yes/No | Selectable |
Rated Values
| Unit | Value | |
| Rated Pressure | kPa | 5 |
| Rated Flow | L/min | 100 |
| Rated Speed | r/min | 42,000 |
Mechanical Data
| Unit | Value | Remarks | |
| Weight of Motor | g | 150 | Approx. |
| Acoustic Noise Level | dB(A) | 48 | 2 kPa |
| dB(A) | 54 | 5 kPa | |
| Rotor Ass'y Inertia | g・㎠ | 18.6 | Typical Value |
| Acceleration | rev/ms | > 110 | 0.5~5kPa: 270ms |
| Lifetime (L10) | hours | 15,000 | 5 kPa, 100L/min |
Electrical Data
| Unit | Value | Remarks | |
| Coil Resistance | Ω |
0.17 0.55 |
20℃ |
| Inductance | mH |
0.11 0.41 |
20℃ |
